SPECIFICATIONS

Brand Name: BLUETTI

Origin: Mainland China

Model Number: AC200MAX

Certification: CE

Certification: FCC

Certification: RoHS

Capacity: 2,048Wh (51.2V, 40Ah)

Type: LiFePO4 (Lithium Iron Phosphate)

Life Cycles: 3,500+ Cycles to 80% Original Capacity

Shelf-life: Recharge to 80% Every 3-6 Months

Management System: MPPT Controller, BMS, etc

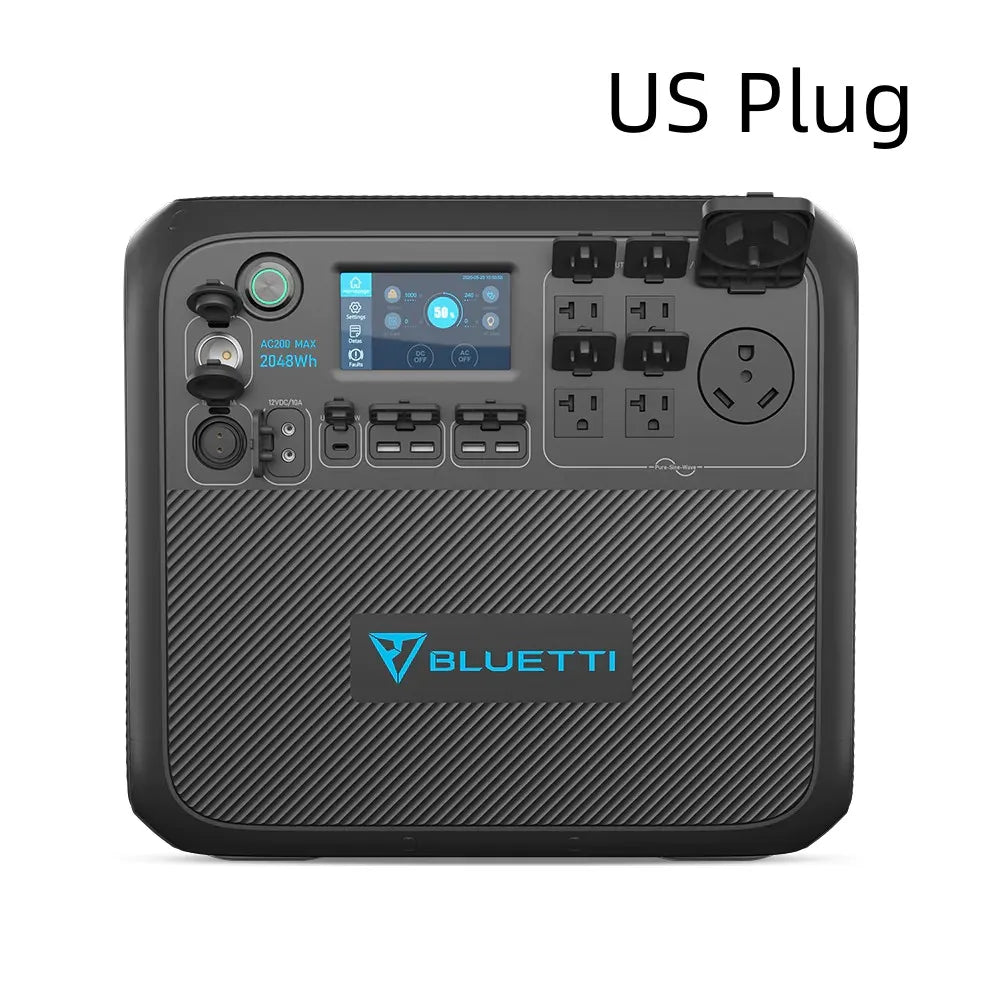

AC Outlets: US Plug: 4 x 120V/20A Outlets; 1 x 120V/30A NEMA TT-30; 2200W In Total

Inverter Type: Pure Sine Wave

Surge Power: 4800W

USB-C Port: 1 x 100W Max.

USB-A Port: 2 x 5V/3A USB-A; 2 x 18W USB-A

12V DC Outlets: 1 x 12V/30A (RV Outlet); 1 x 12V/10A (Car Outlet); 2 x 12V/10A DC 5521 (5.5mm Outlet) *All Regulated.

Wireless Charging Pad: 2 x 15W Max. (For Each)

AC Adapter Input: 500W

Solar Input: 900W Max., VOC 10-145VDC, 15A

Car Input: 12/24V from Cigarette Lighter Port

Max Input: 1,400W, with AC+Solar Input

Operating Temperature: -4-104℉ (-20-40℃)

Storage Temperature: 14-113℉ (-10-45℃)

Warranty: 48 Months

All-round Upgraded Expandable Power Station

BLUETTI first expandable power station-AC200MAX with 2,048Wh LiFePO4 cells and 2,200W pure sine wave inverter.
Your mobile power center at home or on the way.

Powerful Beast

AC200MAX power station comes with amazing 2048Wh LFP cells and a 2200W inverter, making it a safe and reliable power center on the way or off-the-grid.

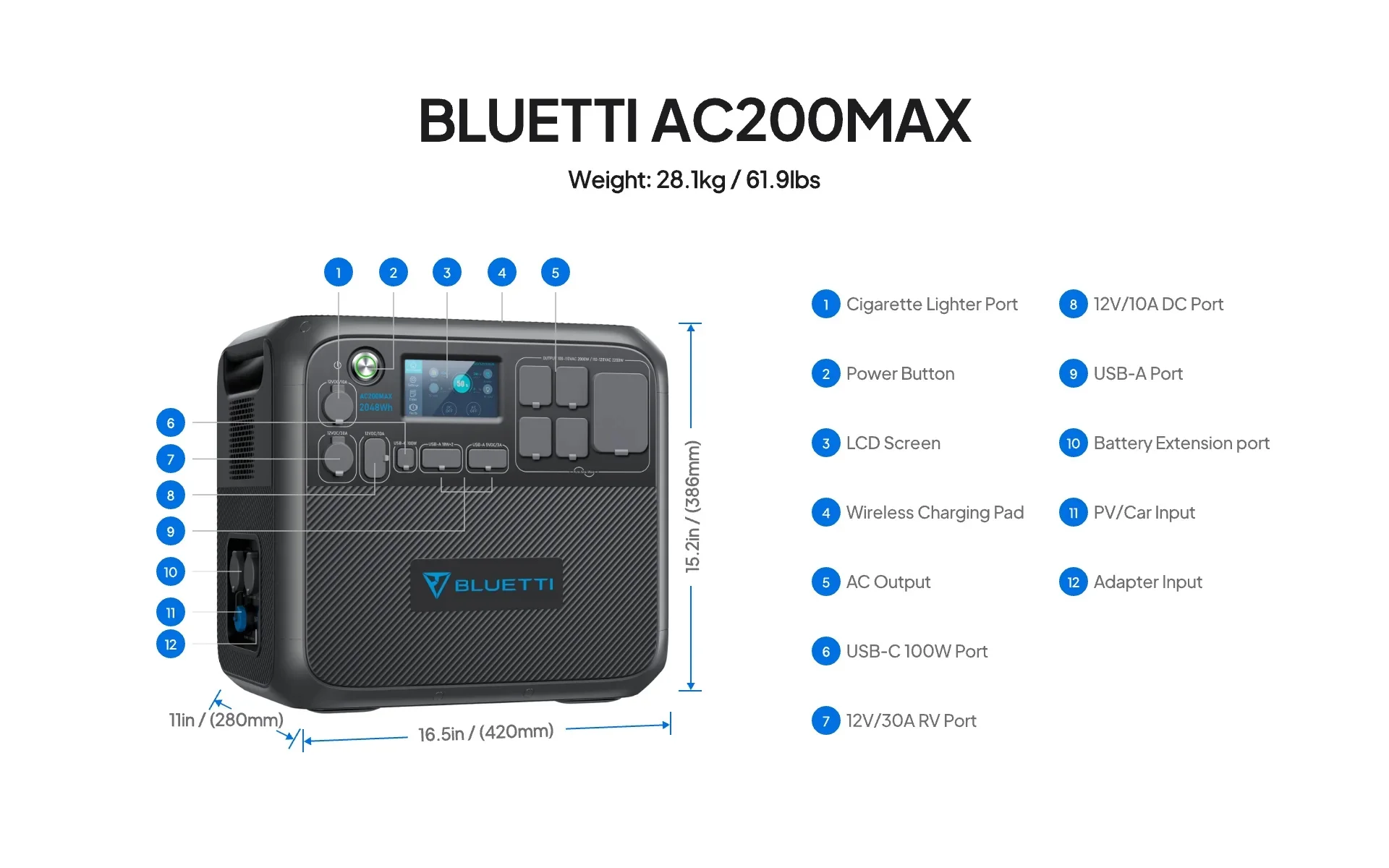

16 Ports for EVERY NEED

The NEMA TT-30 and 12V/30A DC port are perfect for RV dwellers. Besides AC/USB-A/Car port/100W PD, the wireless chargers allow you to charge compatible devices wirelessly.

Expandable Capacity

AC200MAX supports 2 BLUETTI B300(3072Wh) for a whopping 8192Wh or 2 B230(2048Wh) for 6144Wh, enough to juice up all hungry devices.

Super Fast Charging

AC200MAX takes up to 900W solar and 500W AC input. Dual charging by both, you can feed it up in less than 2 hours at 1400W.Less To Spend, More To Love

Struggling between power and flexibility? We got you covered! With two expansion ports, The AC200MAX welcomes up to two BLUETTI B230’s(2048Wh each) or B300(3072Wh each) battery modules, connecting of which can boost the total capacity to a staggering 8192Wh!

Get Charged In Anyway You Prefer

The AC200MAX allows up to 900W of solar input and 500W via the adapter, you can even charge it up via your

wall outlet and solar panels simultaneously, boost a stunning 1400W total charging rate which can top up

your power beast in less than two hours! Further more, every BLUETTI battery module has their own input port for

AC adapters, you’ll get another 500W of input capability with every module added (Up to two for the AC200MAX).

Small Change, Huge Leap

The AC200 Max can now take one module via its solar input port with a converter cable for extra capacity!

Incomparable Outlet Versatility

With AC200MAX’s 16 outlets, you get to run all your needs simultaneously without breaking a sweat. And especially for

the RV enthusiasts the AC200 MAX has a specially designed built-in 30A NEMA TT-30 outlet

and a 12V 30A super powerful DC outlet.
