SPECIFICATIONS

Brand Name: NoEnName_Null

Type: Hand Tool Parts

Origin: Mainland China

After-sales Service Provided: Free spare parts

Warranty: 3 years, 3 Years

Application: Outdoor, Hotel, Garage, Commercial, Household, Home

Power Source: Solar

App-Controlled: NO

Private Mold: NO

Type: Evacuated Tube

Circulation Type: Indirect / Closed Loop (Active)

Connection Type: Direct-Plug

Installation: Freestanding

Housing Material: Stainless steel

Capacity: 150

Place of Origin: Zhejiang, China

Brand Name: Handa

Model Number: HCH-15

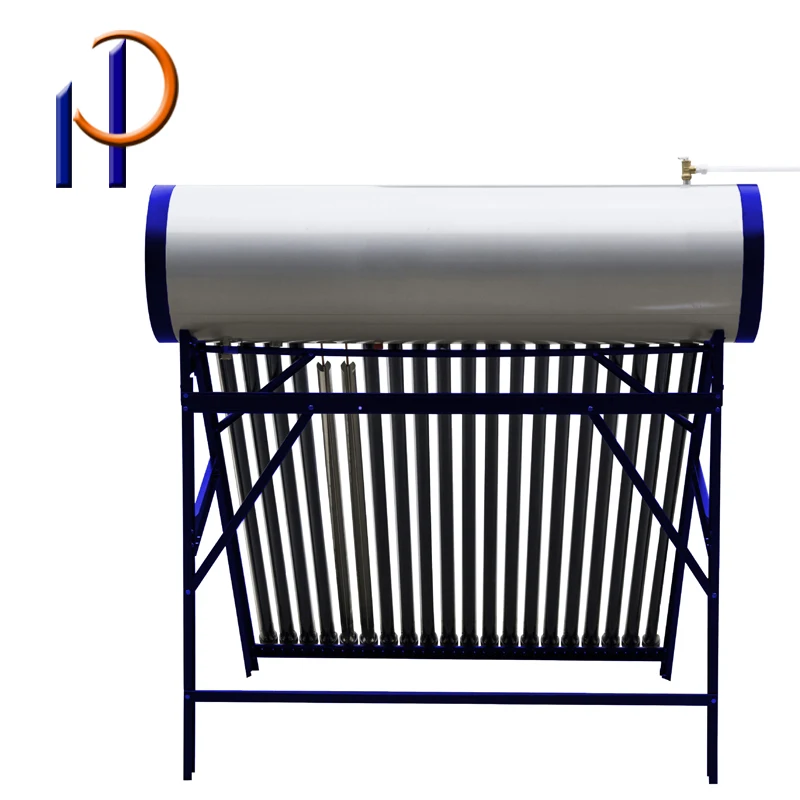

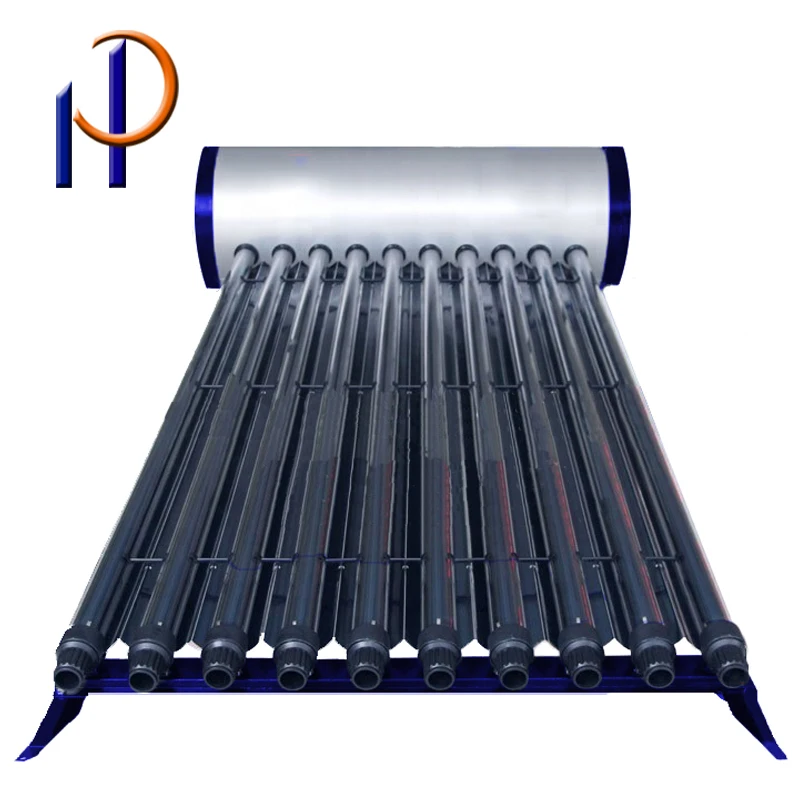

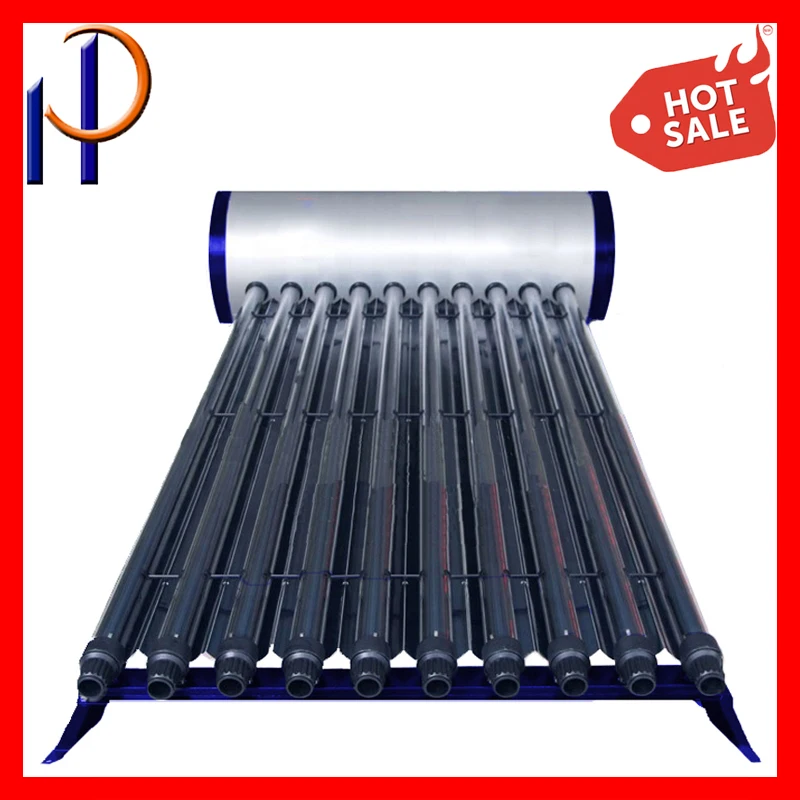

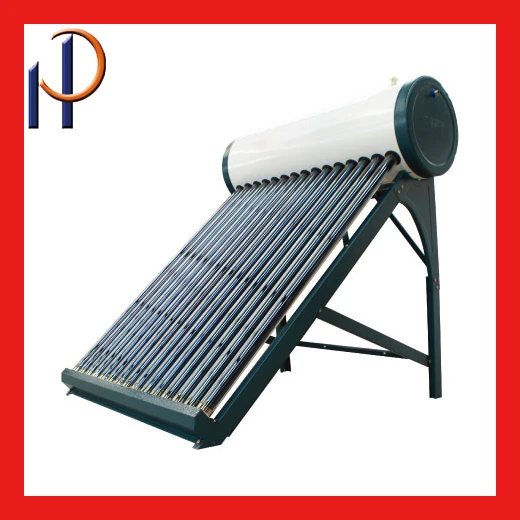

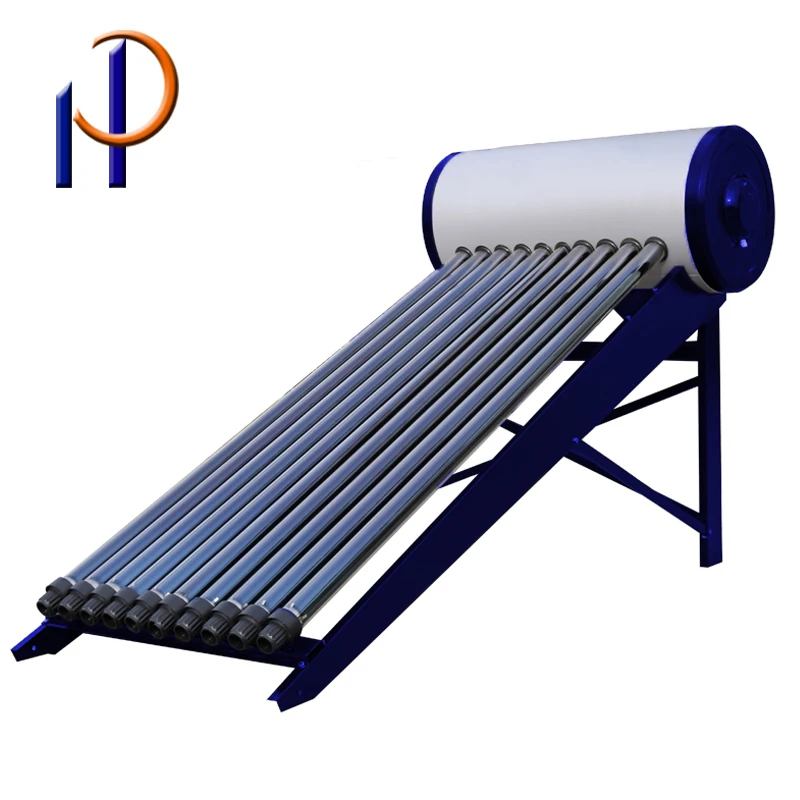

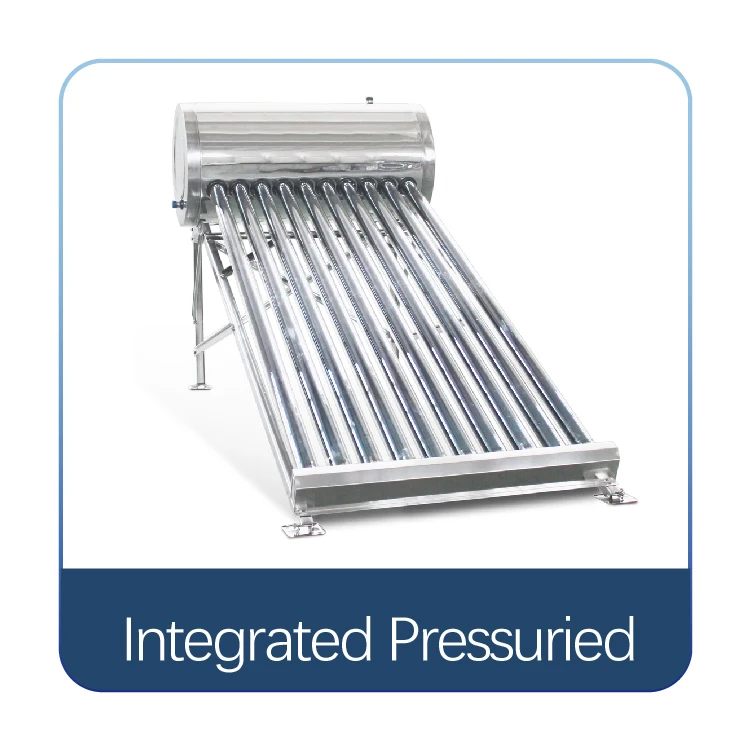

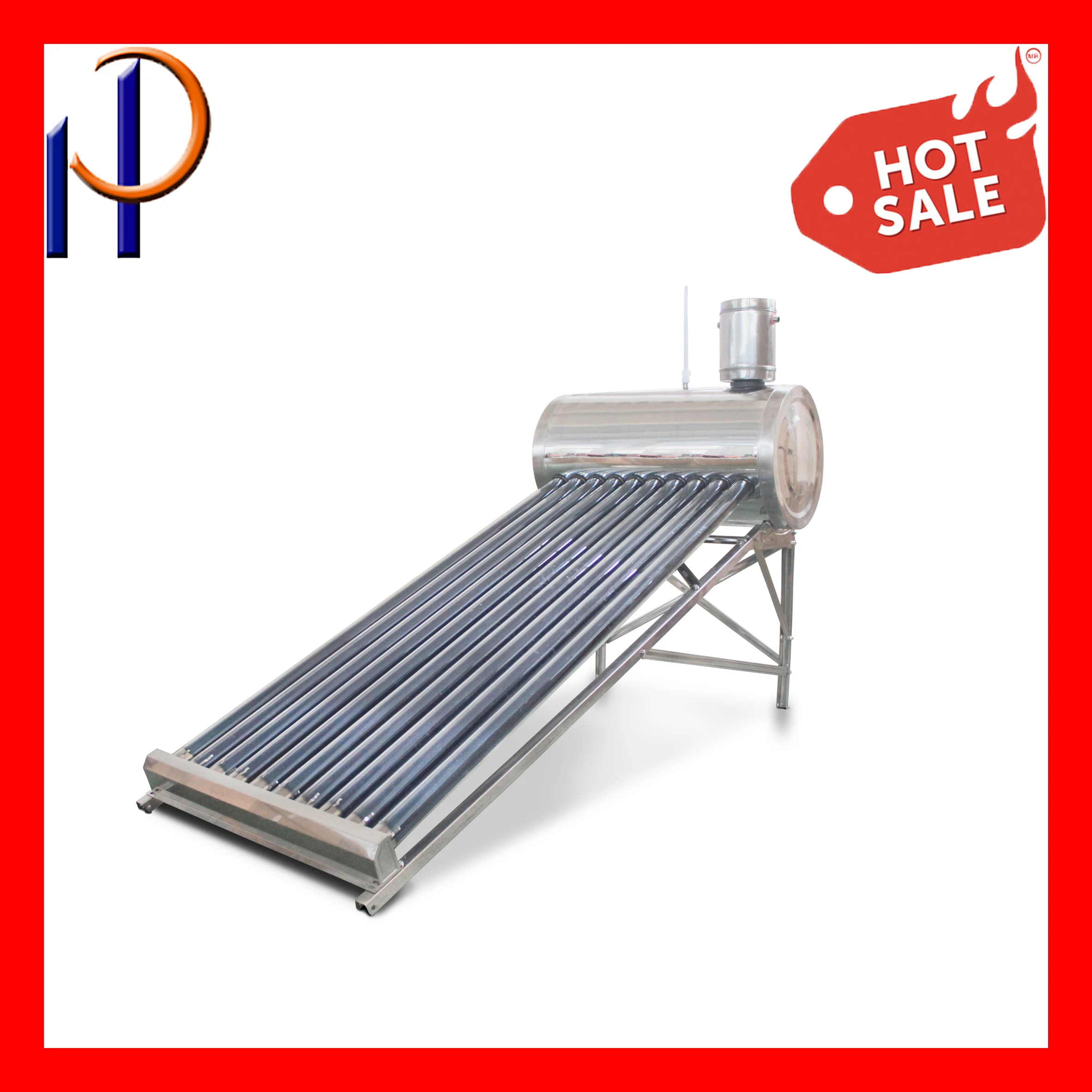

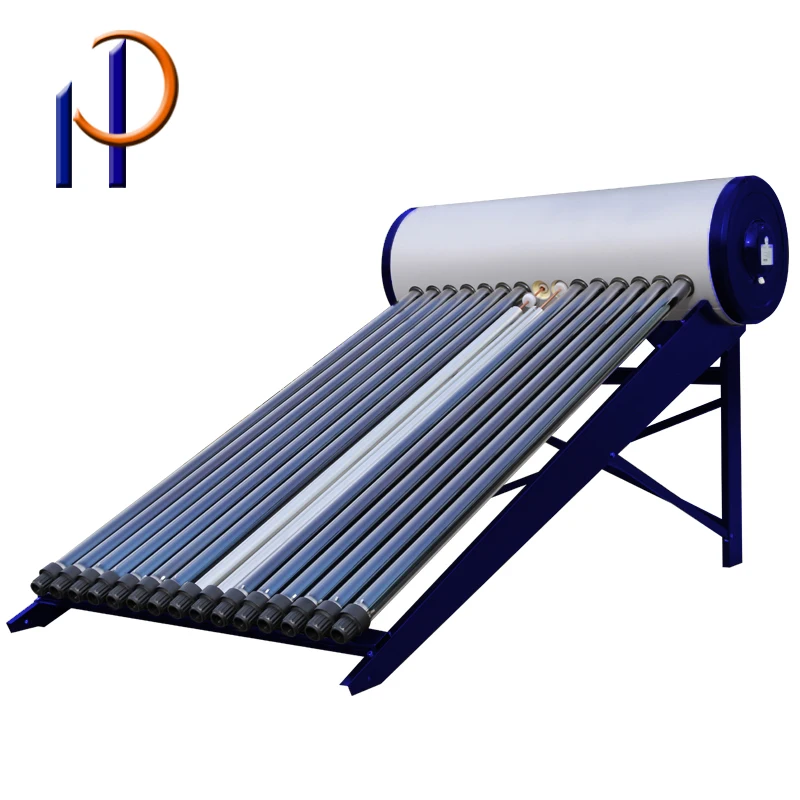

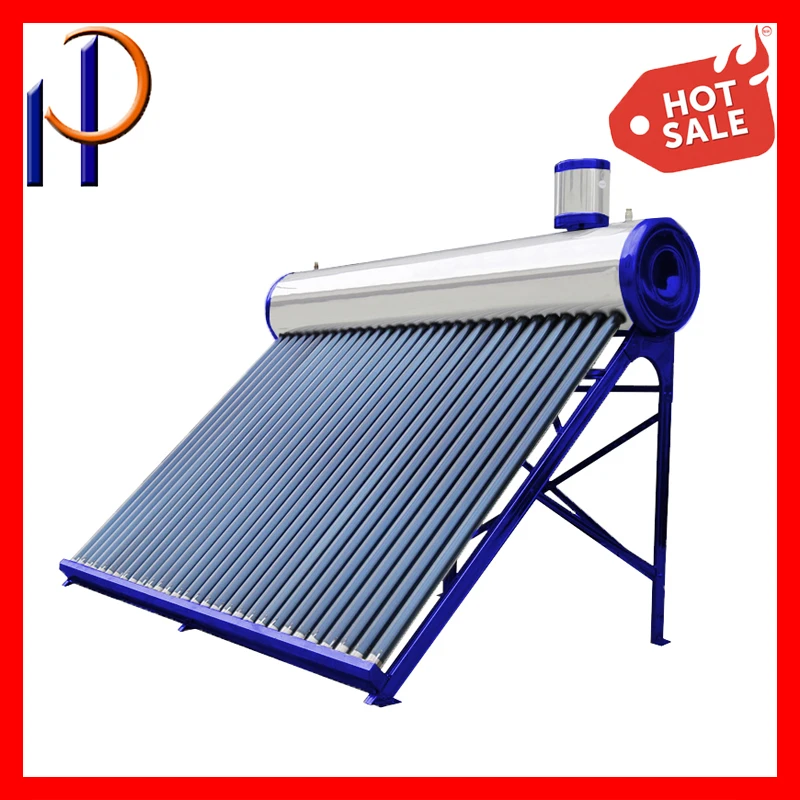

Product name: Integrative Pressurized Solar Water Heater

Item: Vacuum Tube Solar Collector

Name: Pressurized Solar Water Heater Geyser

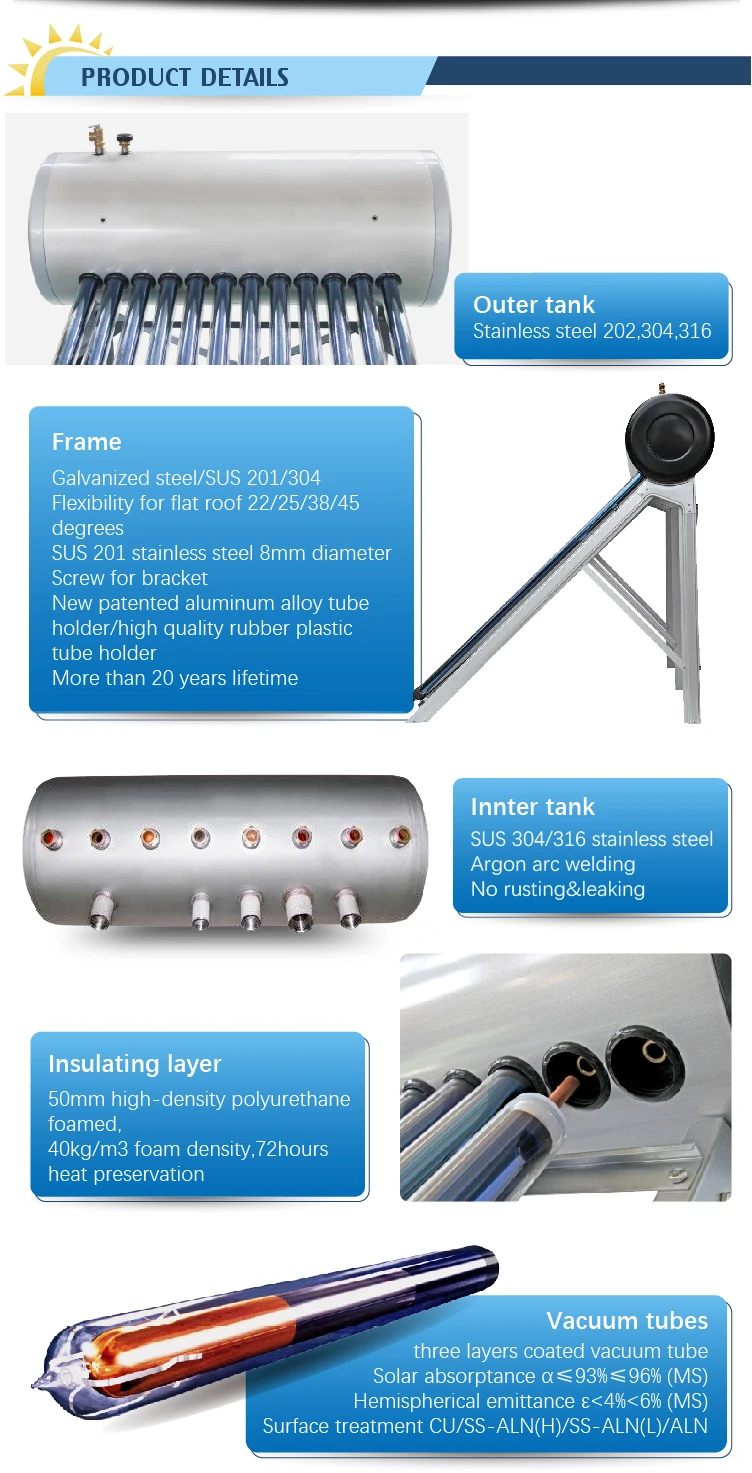

Inner tank: Food Grade Stainless Steel SUS304-2B

Outer tank: Colour Galvanized Steel Plate

Frame: Alumimum Alloy

Color: Blue

Use: Shower Room

My friend, welcome to our store, if you need other models of this product, please contact me, I will send the product link for you to buy! Please contact me for more details: Mobile: +86 15576650740 Whatsapp / Wechat: +86-15576650740

Features

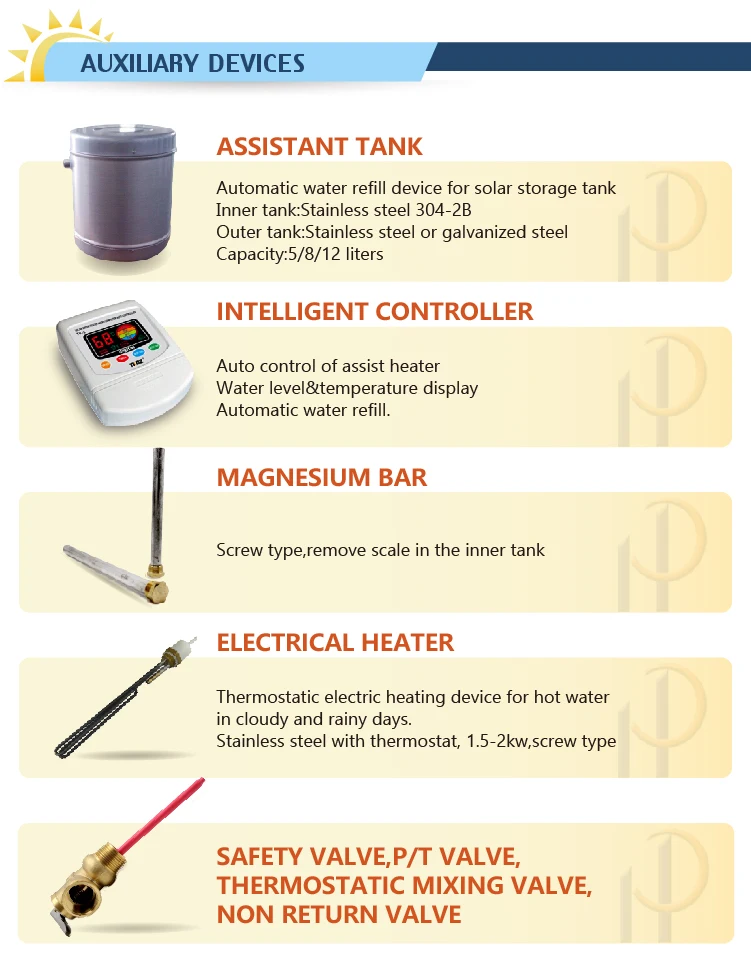

1. Cheap and reliable solution, Simple structures, Easy installation. 2. High efficiency of heating, water heated by sun light directly. 3. Withstand water pressure no more than 0.1 MPa. 4. Operated with any power supplying. 5. Electric heater can be used as back-up in rainy days. 6. Hot water can be used directly, or can be used as a pre-heated. 7. Water flow in the vacuum tubes and is operated when confined. 8. Tank is equipped with electric water heater setting, automatic temperature controller(optional). 9. The insulating layer uses polyurethane bulk bubble, keep hot water 72 hours.

Type	HCH-12
Product Name	Compact pressure solar water heater
Inner Tank Material	Food grade SUS304 2B or SUS316L
Inner Tank Diameter	Φ360mm;Φ370mm;Φ380mm;Φ420mm
Inner Tank Thickness	1.0mm;1.2mm;1.5mm
Outer Tank Material	SPCC;PVDF;SUS304;SUS316;Colorful plate
Outer Tank Diameter	Φ460mm;Φ470mm;Φ480mm;Φ520mm
Outer Tank Thickness	0.4mm 0.45mm 0.5mm
Tube Material	Super conducted heat pipe vacuum tube
Vacuum Tube Size(mm)	58/1800(diameter/length)
Tube Number	9/10/12/15/18/20/24/30/32/36/40
Frames(Stand Parts)	Galvanized plate, Stainless steel or Aluminum alloy
Insulation Layer	High quality polyurethane foam made by advanced high pressure foam machine
Insulation Thickness	50mm,55mm,60mm
Foam Density	42kg/m3
Material of Tank Cover	Galvanized steel/Stainless steel
Holes of Tank	Water inlet /Water outlet/Air vent/Assistant tank--------3/4 inch
Tank Weilding	Argon arc welding
