SPECIFICATIONS

Brand Name: NoEnName_Null

Type: Other

Origin: Mainland China

After-sales Service Provided: Free spare parts

Warranty: 5 years

Type: Other Home Appliance Parts

Power Source: Solar

Place of Origin: Zhejiang, China

Model Number: JXSPC-58/1800/10

Manifold: Aluminum Alloy

Insulation: Rock wool

Vacuum Tube: Dia 58/1800mm

Specification: 10 tubes

Certificate: Solar Keymark and CE

Product Details



Evacuated Tube Heat Pipe Solar Collector Electrical Assistant Heater For Home Hot Water

1.Adopts red copper channel,with great performacnce of heat exchange.

2.Utilize copper heat pipes containing special medium liquid with low boiling point.

3.Work well in all climates, can be functioning well even in ambient temperature of minus 30 degrees celsius.

4.Each heat pipe tube works independently and efficiently.

5.No water flows inside the vacuum tube,no risk of freezing.withstand high water pressure of up to 1.2 Mpa.

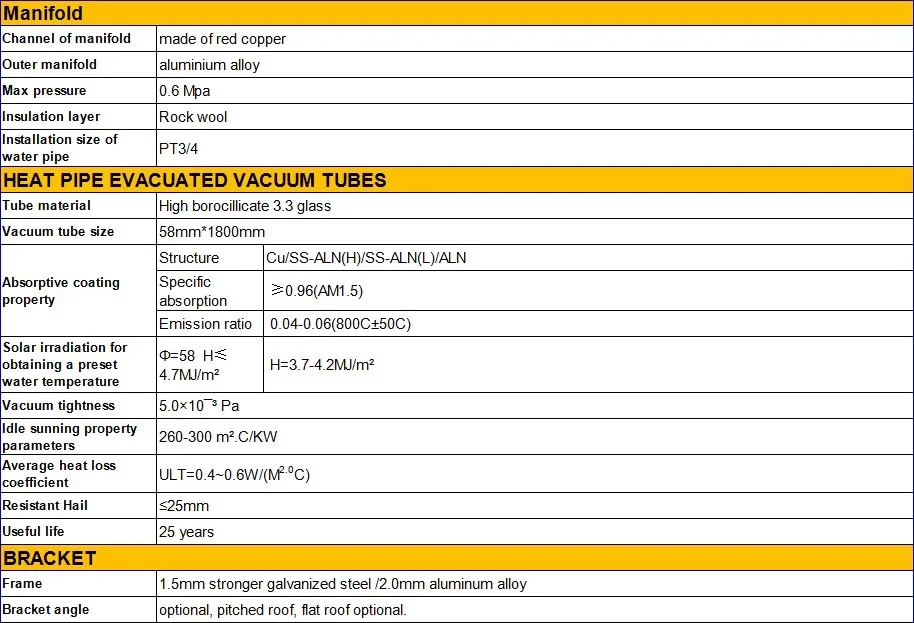

Manifold	Aluminium Alloy Manifold with Red Copper Channel
Bracket	Alluminium Alloy, Stainless steel or Galvanized steel in angle 20, 38, 45 etc.
Vacuum tube	10tubes t 30tubes, with coating CU/ALN/SS and dia 24mm copper heat pipe
